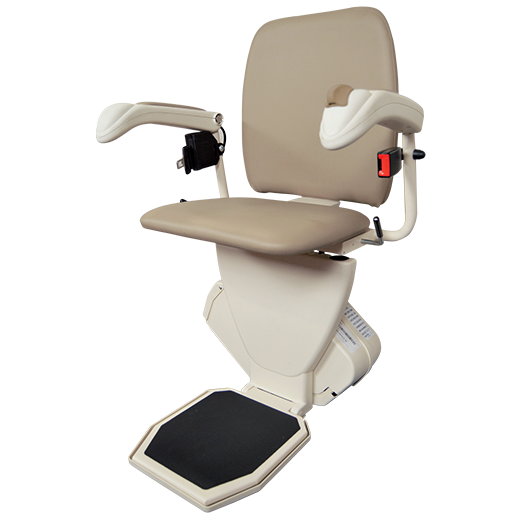

The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.
Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
- Drive Type: Polymer Worm / Worm-Rack
- Battery Powered: Yes
- Self Installable: Yes
- Basic Installation Included: No
- Standard Capacity: 350 lb
- Max Track Length, Standard: 15.5'
- Max Track Length, Optional: 70'
- Unit Footprint, In Use: 22.5"
- Unit Footprint, Parked: 11"
- Track Footprint: 7"
- Track Material: Aliuminum
- Track Width: 4.875"
- Rail Angle, Min: 32°
- Rail Angle, Max: 52°
- Seat Width: 20"
- Seat Depth: 15.5"
- Swivel Seat: Yes
- Flip-Up Seat: Yes
- Flip-Up Armrests: Yes
- Call Stations Included: Wireless
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: Yes
- Digital Diagnostics Display: No
- Power Cord Lengths: 10' with the charger box in the middle
- Key Lock: Yes
