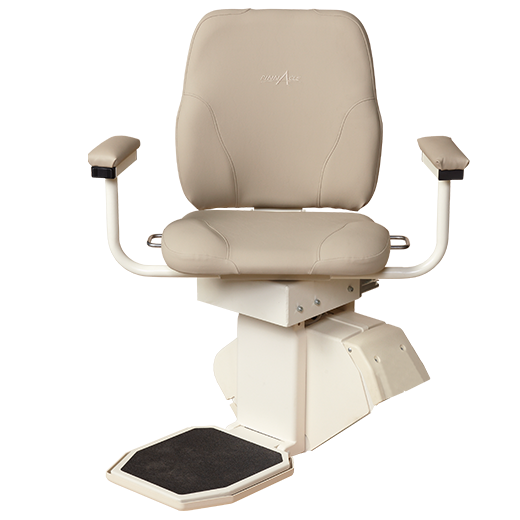

Harmar Pinnacle Stair Lift HD

Product Review
The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing. As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics. Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
  • Drive TypeHelical Worm Drive
  • Battery PoweredYes
  • Self InstallableYes
  • Basic Installation IncludedNo
  • Standard Capacity600 lb
  • Max Track Length, Standard15.5'
  • Max Track Length, Optional40'
  • Track MaterialClear Anodized Aluminum
  • Rail Angle, Min32°
  • Rail Angle, Max52°
  • Seat Width24"
  • Seat Depth16"
  • Swivel SeatYes
  • Flip-Up SeatYes
  • Flip-Up ArmrestsNo
  • Call Stations Included2 Wireless
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Digital Diagnostics DisplayNo
  • Warranty3-Year on Components, 10-Year on Rack , 1-Year on Batteries
  • Key LockYes
